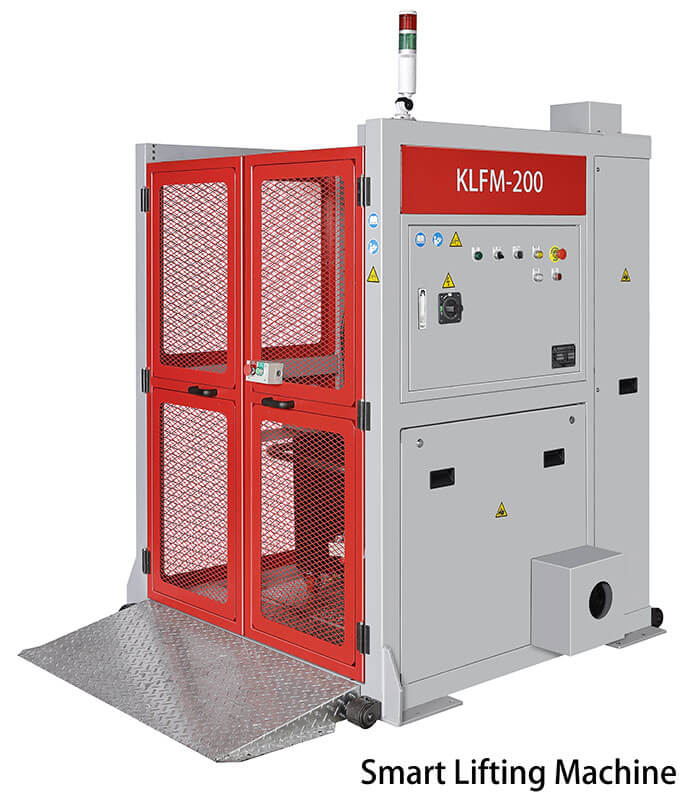

LIFTING MACHINE
KLFM-200

Features

  • Automatic Lifting Function: The metal chip lifting machine is usually equipped with a hydraulic system or electric lifting device, capable of automatically raising or lowering the metal chip cart, reducing the burden of manual operation.
  • High Load Capacity: These machines are designed to withstand the weight of metal chips, so they typically have a high load capacity, enabling them to effectively handle large amounts of metal chips.
  • This lifting machine can be adjusted or customized according to the specifications and size of the scrap iron cart to accommodate various machine models and applications.
  • Safety Design: Typically equipped with protective devices or emergency stop systems to ensure the safety of the operators.
  • The lifting machine can be used in conjunction with crushers and extruders, providing ease of operation, high efficiency, and is suitable for handling waste generated by various processing machines.

Processing machine → Lifting → Crushing → Extrusion → Completion

  • Integration for Multi-Machine Unified Automated Production (Plant-wide Planning)

Specifications

Model KLFM-200
Motor 1/2 HP
Gear Reduction Ratio 200:1
Lifting Length 1200 mm
Max Dimension Cart 750 x 850 x 620 mm
Max Loading Weight 200 kgs
LxWxH 1850 x 1435 x 3037 mm
Net Weight (incl. std accessonies) 600 kgs

We reserve the right to modify & specifications, so that, those are subjected to change, without prior notice.
