Features
- Gant type table could arrange any tools or device on the tools table for cutting, boring, milling ,etc.
- Machine design stable and save space for easy operation.
- Box flat bed instruction help works easily.
- Machine side are box way stable and good accuracy.
Achieving unmanned production
- Capable of retrofitting long or short parts catcher and bar feeder for automatic,unmanned production.
Specifications

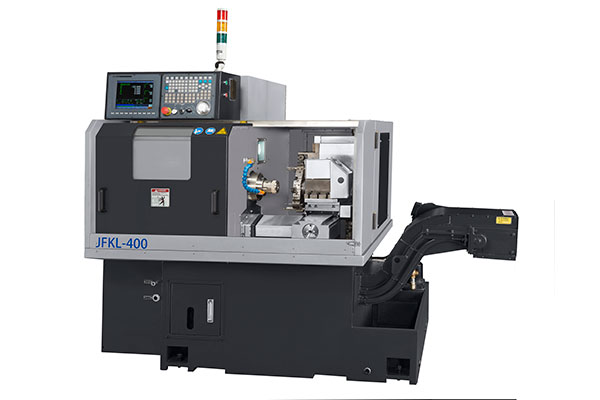

| Machine Specification | JFKL-400 | |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 350 |
| Swing over carriage | mm | 400 |
| Max. turning length | mm | 250 |
| Max. turning dia. | mm | 105 |
| Std. Turning dia. | mm | 105 |
| Bar capacity | mm | 32 |
| Travels | ||
| X axis stroke | mm | 400 |
| Z axis stroke | mm | 250 |
| Y axis stroke (Living tool device) | mm | 180 |
| Spindle | ||
| Max. spindle speed | rpm | 6000 |
| Spindle nose (Collect chuck) | in | A2-4(163E) |
| Spindle bore | mm | 56 |
| Bearing inside dia. | mm | 70 |
| Turret | ||
| No. of tools | no. | 8 |
| Tool shank size | mm | 16/20 |
| Max. boring bar dia. | mm | 20 |
| Exchange time (T-T) | sec | 0.15 |
| Exchange time (including disk up & down) |
sec | 0.5 |
| Feedrate | ||
| Rapid feedrate | m/min | 18/24 |
| JOG feedrate | mm/min | 6000 |
| Motor | ||
| Spindle motor (cont./30min) | kW | 3.7/5.5 |
| Sub-spindle motor | kW | 2.0* |
| Feed servo motor | kW | 1.0/1.5 |
| Coolant | HP | 1 |
| Tank capacity | L | 75 |
| Controller | ||
| FANUC/MITSUBISHI/SYNTEC | 0i-TF(3)/M80(B)/21TA | |
| Machine | ||
| Power requirement | kVA | 20/25* |
| LxWxH (with chip conveyor) |
mm | 2000X1750X184 |
| Net weight (incl. std accessonies) | kgs | 1650 |
Specifications are subject to change without prior notice.
SPECIAL EQUIPMENTS
STANDARD ACCESSORIES
- 10.4" color display
- Collect chuck 163E
- Central Lubrication System
- Coolant System
- Hydraulic Unit System
- Three Color Indicator Tower
- Tool Box
- Electric Manual with Jenn Wei / One Set
- Operation Manual with Jenn Wei & Fanuc
- Finished Parts Catcher and Conveyor
- Foot Switch
- O.D. Turning Tool Rack 4 Sets
- I.D. Turning Tool Holder 3 sets
- Bar Feeder Interface
- Full-Closed Cover Guard
- English Display Screen
- Cabinet Heat Exchanger
- Count Complete Auto. Power Off
- Two-year Warranty for Controller
- Chain type Chip Conveyor
- 1 Year Machine Warranty
- Tool sleeve 8.10.12.16.20 per 2 sets
OPTION ACCESSORIES
- High pressure coolant pump 5 bars
- Spindle bore 52 mm(175E)
- Spindle bore 60mm(181E)
- Polygon device 2.0kw(3000rpm)
- Polygon device 4.5kw(3000rpm)
- Bit cutting device 1.0kw(3000rpm)
- Bit cutting device 2.0kw(3000rpm)
- Servo turret index hydraulic 8T
- Auto bar feeder
- CE standard
- Electric box air condition
- AVR
- Transformer
- Standard export wooden case
