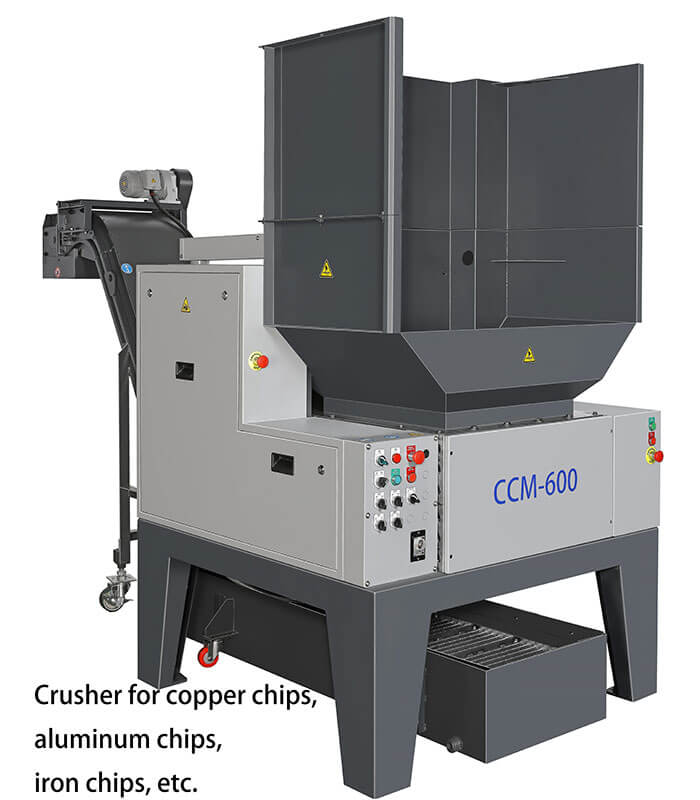

CRUSH MACHINE
CCM-600/CCM-700

Features

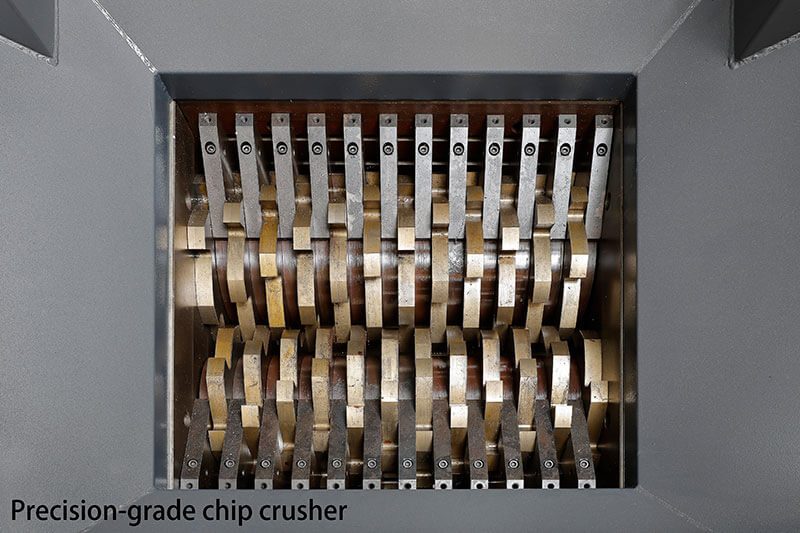

  • The dual-axis structure, hexagonal tool shaft, uses multiple blades and tools, which work in conjunction with the tool shaft to achieve multi-angle variations. This results in strong cutting forces, demonstrating powerful crushing capabilities.
  • Automatic, high workload, compact size with minimal space occupancy, low noise, and screen-controlled output after crushing.
  • The blades are made from special steel material, heat-treated for hardening. They have a long service life and are specially designed for easy maintenance with single-piece replacement, reducing wear and tear costs.

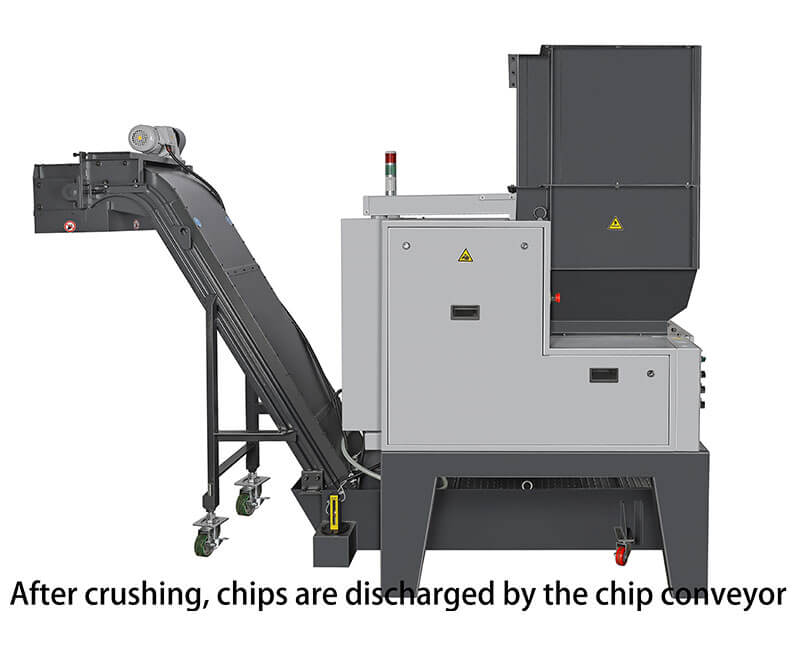

  • After shredding, the material can be conveyed out with the help of a conveyor belt.

Advantages

  • Automatic multi-functionality: Equipped with a dual-axis with multi-speed differences and various operation modes, it can handle different types of materials, adapting to a wide range of scrap metal shapes with strong versatility.
  • This machine features automatic functionality and is easy to operate: simple to maintain and use, it enhances work Efficiency.
  • This iron scrap conveyor is equipped with a water pump motor and a liquid level detection system, which can automatically and effectively separate and concentrate the liquid after crushing. The water pump motor quickly removes excess liquid, keeping the work area clean, while the liquid level detection system monitors in real-time to ensure stable system operation. This enhances production efficiency and environmental cleanliness, enabling the recycling and reuse of oil and water.
  • The crusher can be used in conjunction with lifting machines and compactors, achieving automation and labor-saving, with high efficiency. It is suitable for processing debris generated by various machining operations.

Filter

  • The filter is water-resistant and durable, capable of efficiently filtering materials (customizable sizes available), and improving crushing efficiency.

Processing machine → Lifting → Crushing → Extrusion → Completion

  • Integration for Multi-Machine Unified Automated Production (Plant-wide Planning)

Specifications

Model CCM-600 CCM-700
Motor 10 HP
Gear Reduction Ratio 1:87
Knife Material SKD11 / SCM440*
Specification And Quantity Of Knife 24 m/m x 23 pcs 24 m/m x 29 pcs
Inlet Size 745 x 1090 x 878 mm
Crusher Room Dimensions 580 * 550 mm 680 * 550 mm
Mesh Size Ø30 / Ø50 / Ø70*
LxWxH(with chip conveyor) 2955 x 1300 x2180 mm
Net weight (incl. std accessonies) 2500 kgs 2610 kgs

We reserve the right to modify & specifications, so that, those are subjected to change, without prior notice.
